Blow Molding Grade Thermoplastic Elastomers (TPEs)
Blow molding is a manufacturing process by which hollow plastic parts are formed. In general, there are three main types of blow molding: extrusion blow molding, injection blow molding, and injection stretch blow molding.
Mostly the TPEs parts are manufactured by extrusion blow molding. The process starts with melting TPEs into tube. The tube is clamped into a blow molding mold. The tube is pinched at one end, welding it together and then air is blown into it. The air inflates the TPEs out to match the mold cavity. Once the TPEs has cooled down and hardened, the mold opens and the part is ejected.
Phon Tech has developed PHOENIX™ Blow Molding Grade Thermoplastic Elastomers (TPEs) that are suitable for blow molding process. They can be used for medical

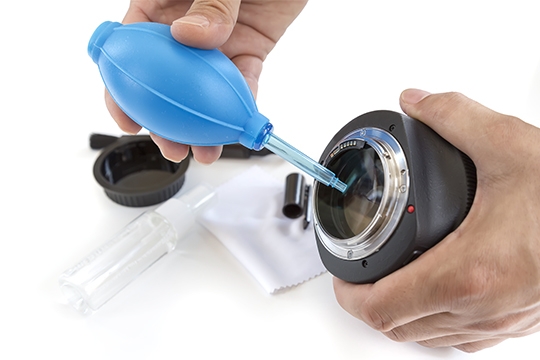

balloon tamponade, BP cuff balloon, dropper suction, blower bulb, toy, automotive bellow, etc.
Mostly the TPEs parts are manufactured by extrusion blow molding. The process starts with melting TPEs into tube. The tube is clamped into a blow molding mold. The tube is pinched at one end, welding it together and then air is blown into it. The air inflates the TPEs out to match the mold cavity. Once the TPEs has cooled down and hardened, the mold opens and the part is ejected.
Phon Tech has developed PHOENIX™ Blow Molding Grade Thermoplastic Elastomers (TPEs) that are suitable for blow molding process. They can be used for medical
balloon tamponade, BP cuff balloon, dropper suction, blower bulb, toy, automotive bellow, etc.
- Features
- Smooth and silky surface
Non-sticky
Excellent tensile strength
Excellent resilience
Stable melt flow
- Applications
- blown film, BP cuff balloon, toys, medical balloon tamponade, blower bulb, etc.
- Safety/Quality Approvals
- FDA CFR 21 177.2600, RoHS, EN71, REACH SVHC, PAHS & phthalate, Formaldehyde, Dimethyl Fumarate, Nonylphenol
| ITEM | Color | Hardness | Specific Gravity | Tensile Strength | 100% Tensile Modulus | Elongation at Break | Tear Strength |
|---|---|---|---|---|---|---|---|
| ASTM D2240 | ASTM D792 | ASTM D412 | ASTM D412 | ASTM D412 | ASTM D624 Die C | ||
| Shore A/D | g/cm3 | psi | psi | % | lbs/in | ||
| 04351 | Translucent | 35±3 A | 0.88±0.03 | 712.1 | 109.6 | 805.6 | 110.8 |
| 04501 | Translucent | 55±3 A | 0.88±0.03 | 1302.6 | 211.8 | 1120.7 | 183.3 |
| 04605 | Translucent | 60±3 A | 0.88±0.03 | 1065.8 | 415.3 | 769.2 | 222.2 |
| 04655 | Translucent | 65±3 A | 0.89±0.03 | 1092.8 | 331.9 | 788.5 | 212 |
