Extrusion Grade Thermoplastic Elastomers (TPEs)
Extrusion is a process used to create objects of a fixed cross-sectional profile. A material is pushed through a die of the desired cross-section. The two main advantages of this process over other manufacturing processes are its ability to create very complex cross-sections, and to work materials that are brittle, because the material only encounters compressive and shear stresses. It also forms parts with an excellent surface finish.
Phon Tech has developed several PHOENIX™ Extrusion Grade Thermoplastic Elastomers (TPEs) that are suitable for extrusion profile, tube, film and sheet. The material has low MFI and very consistent quality for continual process of extrusion. Typically, the MFI of TPEs should be less than 3g/10min.
PHOENIX™ Extrusion Grade Thermoplastic Elastomers (TPEs) can be co-extruded with PP and PE, which creates an excellent combination of hard and soft material. Soft and hard TPEs combination can also be done by PHOENIX™ Extrusion Grade Thermoplastic Elastomers (TPEs).
Phon Tech has developed several PHOENIX™ Extrusion Grade Thermoplastic Elastomers (TPEs) that are suitable for extrusion profile, tube, film and sheet. The material has low MFI and very consistent quality for continual process of extrusion. Typically, the MFI of TPEs should be less than 3g/10min.
PHOENIX™ Extrusion Grade Thermoplastic Elastomers (TPEs) can be co-extruded with PP and PE, which creates an excellent combination of hard and soft material. Soft and hard TPEs combination can also be done by PHOENIX™ Extrusion Grade Thermoplastic Elastomers (TPEs).
- Product Series
- PHOENIX™ TPE 04 Series (Shore 30A ~ 80A)
SEBS based. High resilience grade with lowest melt flow index (MFI). For extrusion and blow molding. RoHS compliant. Conform to FDA, ISO 10993-5 & ISO 10993-10. Suitable for medical tube, extrusion profile, blown film, sheet
PHOENIX™ TPE 06 Series (Shore 15A ~ 95A)
SEBS based only. Superior weatherability. For outdoor use. FDA approved.
PHOENIX™ TPE 07 Series (Shore 15A ~ 95A)
SEBS based. Common grade for window profile and tube
PHOENIX™ TPE 16 Series (Shore 45A ~ 95A)
TPV+SEBS based. Higher heat resistance and good surface finish.

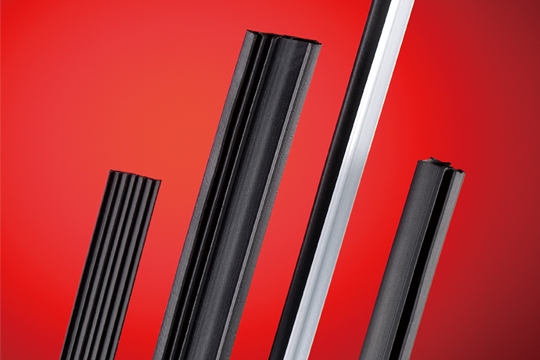

Suitable for window seal, extrusion profile, wire and cable sheath
- Features
- Smooth and silky surface
Non-sticky
Excellent tensile strength
Excellent resilience
Stable melt flow
- Applications
- tube, profiles, sheets, film, band, wire and cable sheath, etc.
- Safety/Quality Approvals
- FDA CFR 21 177.2600, RoHS, EN71, REACH SVHC, PAHS & phthalate, Formaldehyde, Dimethyl Fumarate, Nonylphenol, ISO 10993
| ITEM | Color | Hardness | Specific Gravity | Tensile Strength | 100% Tensile Modulus | Elongation at Break | Tear Strength |
|---|---|---|---|---|---|---|---|
| ASTM D2240 | ASTM D792 | ASTM D412 | ASTM D412 | ASTM D412 | ASTM D624 Die C | ||
| Shore A/D | g/cm3 | psi | psi | % | lbs/in | ||
| 04402 | Translucent | 40±3 A | 0.87±0.03 | 642.7 | 122.5 | 690.4 | 103.6 |
| 04501 | Translucent | 55±3 A | 0.88±0.03 | 1302.6 | 211.8 | 1120.7 | 183.3 |
| 04551 | Translucent | 55±3 A | 0.88±0.03 | 901.7 | 193 | 768.4 | 168 |
| 04601 | Translucent | 60±3 A | 0.88±0.03 | 1150.2 | 270.4 | 786.8 | 224 |
| 04604 | Translucent | 60±3 A | 0.88±0.03 | 1194.1 | 277.3 | 938.6 | 201.7 |
| 04651 | Translucent | 65±3 A | 0.89±0.03 | 1328 | 291.5 | 1051.9 | 220.2 |
| 04658 | Translucent | 65±3 A | 0.90±0.03 | 935.9 | 281.5 | 883.9 | 197.7 |
| 04704 | Translucent | 75±3 A | 0.89±0.03 | 1279.4 | 460.1 | 792.1 | 273.6 |
| 04751 | Translucent | 75±3 A | 0.88±0.03 | 1335.4 | 378.6 | 889.6 | 220.8 |
| 04801 | Translucent | 80±3 A | 0.88±0.03 | 1835.9 | 617.7 | 991.3 | 346.8 |
| ITEM | Color | Hardness | Specific Gravity | Tensile Strength | 100% Tensile Modulus | Elongation at Break | Tear Strength |
|---|---|---|---|---|---|---|---|
| ASTM D2240 | ASTM D792 | ASTM D412 | ASTM D412 | ASTM D412 | ASTM D624 Die C | ||
| Shore A | g/cm3 | psi | psi | % | lbs/in | ||
| 06404 | White | 40±3 A | 0.98±0.03 | 998.5 | 122.2 | 1130.2 | 128.4 |
| 06502 | White | 50±3 A | 1.18±0.03 | 641 | 149.1 | 703.5 | 105.2 |
| 06503 | White | 50±3 A | 0.98±0.03 | 1112.3 | 168.6 | 1046.7 | 137.8 |
| ITEM | Color | Hardness | Specific Gravity | Tensile Strength | 100% Tensile Modulus | Elongation at Break | Tear Strength |
|---|---|---|---|---|---|---|---|
| ASTM D2240 | ASTM D792 | ASTM D412 | ASTM D412 | ASTM D412 | ASTM D624 Die C | ||
| Shore A | g/cm3 | psi | psi | % | lbs/in | ||
| 07606 | Black | 60±3 A | 0.97±0.03 | 1225.1 | 223.6 | 980.4 | 163.3 |
| 07652 | Black | 70±3 A | 1.04±0.03 | 1134.9 | 327.2 | 863.4 | 185.8 |
| ITEM | Color | Hardness | Specific Gravity | Tensile Strength | 100% Tensile Modulus | Elongation at Break | Tear Strength |
|---|---|---|---|---|---|---|---|
| ASTM D2240 | ASTM D792 | ASTM D412 | ASTM D412 | ASTM D412 | ASTM D624 Die C | ||
| Shore A | g/cm3 | psi | psi | % | lbs/in | ||
| 16651 | Black | 70±3 A | 1.03±0.03 | 1301.2 | 292.3 | 711.4 | 196.2 |
| 16801 | Light Yellow | 80±3 A | 0.97±0.03 | 1496.5 | 421.8 | 798.8 | 243.6 |
| 16901 | Black | 90±3 A | 1.01±0.03 | 2437.9 | 981.9 | 740.5 | 445.1 |
