ESD Thermoplastic Elastomers (TPEs)
The market requirement creates the Phoenix ESD series, it is composed of two types of materials, which include Static Dissipative and Conductive ones.
These two types of material can present reliable results in their standard of ohm-cm, and both of the ohm-cm can be customized to customer requirements.
Moreover, the physical properties of the material can be adjusted according to customer requirements.
These two types of material can present reliable results in their standard of ohm-cm, and both of the ohm-cm can be customized to customer requirements.
Moreover, the physical properties of the material can be adjusted according to customer requirements.
- Features

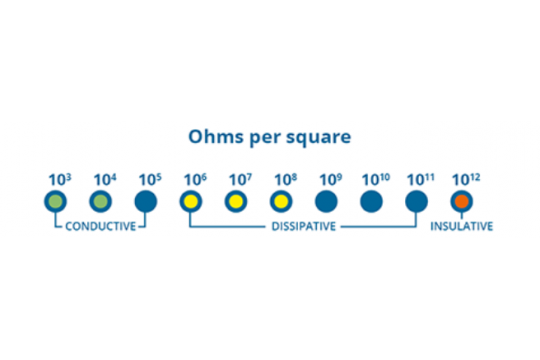

- Conductive one can achieve <1x10^4 ohm-cm
Static dissipative one can achieve<1x10^10 ohm-cm
- Applications
- Electronic devices, Caster, Hand tools grip, etc
- Safety/Quality Approvals
- RoHS, EN71, REACH SVHC, PAHS & phthalate, Formaldehyde, Dimethyl Fumarate, Nonylphenol
| ITEM | Color | Hardness | Specific Gravity | Tensile Strength | 100% Tensile Modulus | Elongation at Break | Tear Strength |
|---|---|---|---|---|---|---|---|
| ASTM D2240 | ASTM D792 | ASTM D412 | ASTM D412 | ASTM D412 | ASTM D624 Die C | ||
| Shore A/D | g/cm3 | psi | psi | % | lbs/in | ||
| 07702 | Black | 70±3 A | 1.09±0.03 | 491.2 | 405.8 | 270 | 130 |
| 07751 | Black | 80±3 A | 1.07±0.03 | 720.2 | 622.4 | 314.7 | 191.9 |
